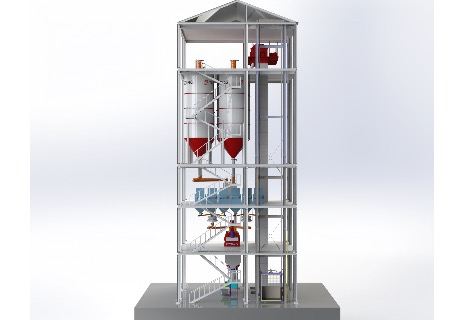

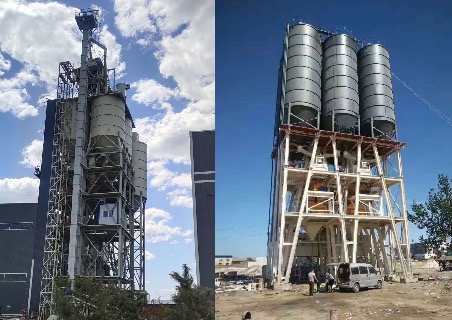

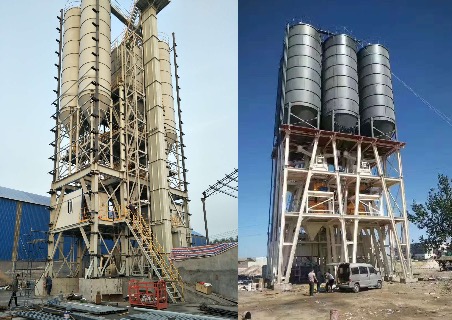

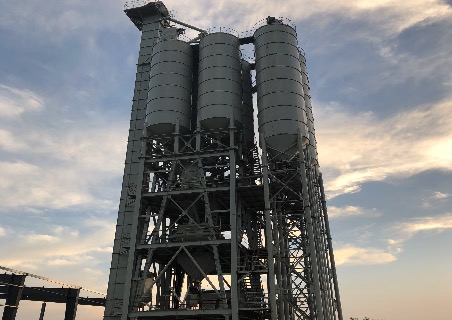

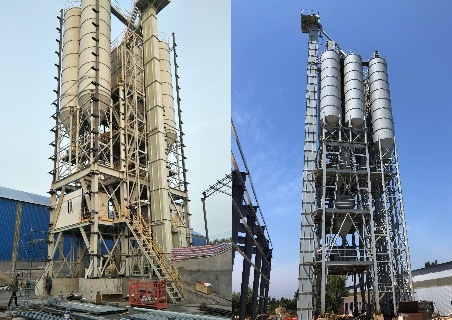

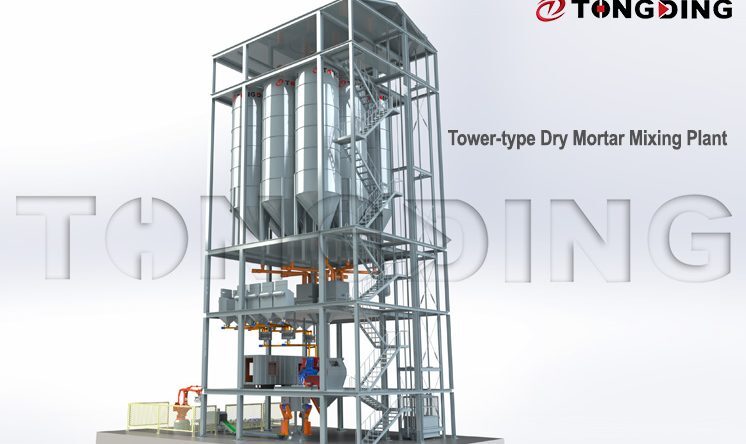

Tower-Type Ready-Mixed Mortar Station

Capacity:  10-120 T/H

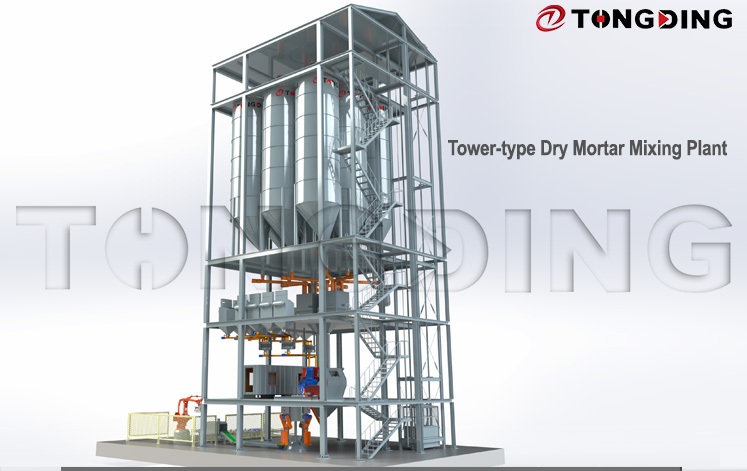

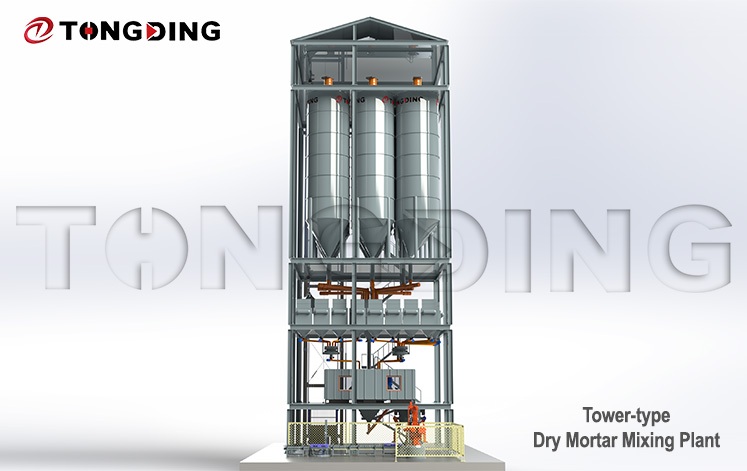

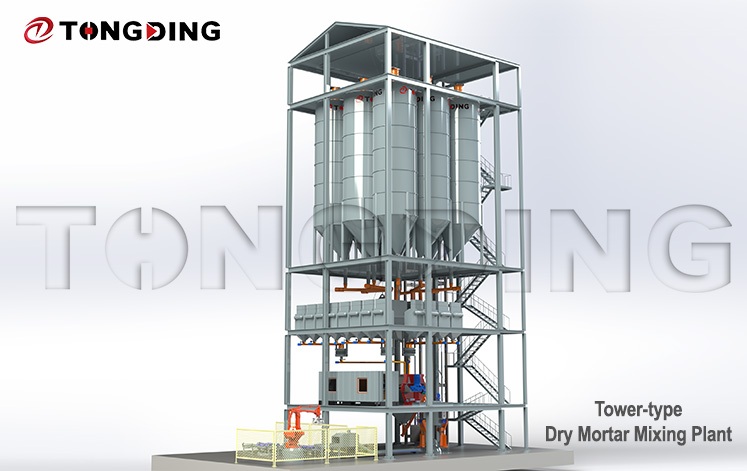

Tower-type dry mortar mixing plant is arranged from top to bottom according to the production process, and the production is relatively smooth. It is suitable for the production of ordinary mortar and various special mortar, with many kinds of products and small cross pollution of raw materials. It has small floor area, atmospheric appearance, relatively low energy consumption, and relatively large initial investment compared with other process structures.

Advantages

1. Tower structure, without secondary lifting and conveying, the mixing system can reduce consumption by about 25%. the mixing efficiency is about 30% higher than that of the traditional double-horizontal shaft mixer.

2. When the equipment is in operation, the dust emission concentration<20mg/ Nm³ (optionally<10mg/Nm³ configuration), and the noise at boundary<55dB.

Applicable Materials

Used for Masonry  mortar,Plastering  mortar(bottom),Floor  mortar,Caulking agent mortar(black),Seaming agent mortar,Caulking agent mortar(white),Seaming agent mortar,Thermal mortar,Self-leveling mortar,Whitewashed plaster(bottom),Cement plaster mortar,External putty powder,etc.

Dry-mortar

Dry Mortar

Cementing-material

Cementing Material

Putty-powder

Putty Powder

Grouting-material

Grouting Material

Masterbatch

Masterbatch

Additive

Additive

Vitrified-microsphere

Vitrified Microsphere

Hot-melt-marking-coating

Hot Melt Marking Coating

Plastering-gypsum

Plastering Gypsum

Parameter

MODEL TDSJ2 TDSJ3 TDSJ4 TDSJ6 TDSJ10 Remark
CAPACITY(T/H) 10-20 20-40 40-60 60-80 80-120
HOST MOTOR(kw) 18.5 22 30 45 55
AGGREGATE SIZE(mm) 0〜4.75 0〜4.75 0〜4.75 0〜4.75 0〜4.75
AGGREGATE SCALE(kg) (200〜1000)±1% (200〜1500)±1% (200〜2000)±1% (400〜3000)±1% (400〜4000)±1% customizable
CEMENT SCALE(kg) (100-600)±1% (100-700)±1% (100-800)±1% (200-1300)±1% (200-1800)±1% customizable
ADDITIVE SCALE(kg) (5〜30)±0.5% (10〜40)±1% (10〜50)±0.5% (10〜200)±0.5% (10〜200)±0.5% customizable

The main structure of the equipment

1.Drying-System

1.Drying System

triple cylinder rotary dryer , intelligent monitoring and easy maintenance

The Triple cylinder rotary dryer is divided into the inner cylinder, the middle cylinder and the outer cylinder. high efficiency and energy saving.

2.Dust-Collecting-System

2.Dust Collecting System

intelligent cleaning,energy saving and environmental protection

The system uses the unique integrated container(gravity + bag) dust collector to achieve intelligent control of pulse ash removal, with the all environmental emissions less than 20mg/Nm³

3.Weighing-System

3.Weighing System

accurate and stable, quality controllable

Designed with unique VF feeding technologies to realize batching accuracy higher than requirements of industrial standards.

4.Mixing-System

4.Mixing System

high efficiency, energy saving, wear resistance and loss prevention

Combines advanced plow type mixer patented core technology and unique VF patented mixing technology to ensure high efficiency and energy saving by 25%, maximum mixing ratio: 1:10000, high wear resistance and long service life.

5.Packaging-System

5.Valve Bag Packaging Machine

high automation efficiency, cost saving

Valve port packaging machines are mainly divided into impeller packaging machine, air floating packing machine and pneumatic packaging machine.After the goods are filled, the products will squeeze the closed valve port from the inside to achieve the purpose of sealing.

6.Dust-Removal-System

6.Dust Removal System

prevent mortar separation, ensure energy conservation and environmental protection

Bulk packaging machine is an ideal equipment for the loading and shipping of powder materials in the building materials, metallurgy, coal and chemical industries.

7.Mixing-Control-Cabinet

7.Control System

dry mortar mixing control cabinet

Dry mortar mixing control cabinet can receipt more than 10 kinds of formula settings and automatically control batching, weighing and mixing. There are 2 kinds of control cabinets: industrial computer control cabinet and touch screen control cabinet. In contrast, the touch screen is more convenient to use.
